OFC vs OCC Speaker Cables: Science, Sound and Differences

OFC and OCC are two of the most frequently discussed copper conductors in audiophile speaker cables.

OFC, or oxygen-free copper, is widely used because it combines high conductivity, flexibility, durability and reasonable cost. OCC, or Ohno Continuous Cast copper, is produced using a specialized casting method designed to create longer, more continuous crystal structures.

In listening discussions, OFC is often described as warm, full-bodied and powerful, while OCC is associated with balance, transparency and greater detail. But how much of this is supported by measurable science?

The short answer is:

• OFC and OCC have genuine differences in manufacturing process and microscopic structure.

• High-quality OFC already has excellent electrical conductivity.

• Research confirms that grain boundaries can contribute to electron scattering in copper.

• These material differences do not prove that every listener will hear OFC as “warm” or OCC as “detailed.”

• In a real speaker system, conductor cross-sectional area, cable length, resistance and connection quality may matter more than the OFC or OCC label alone.

This guide separates measurable facts from common listening impressions, helping you select a speaker cable without relying on exaggerated claims.



What Is OFC Copper?

OFC stands for oxygen-free copper. It is a family of highly refined copper grades produced under controlled conditions to minimize oxygen and other impurities.

One commonly referenced grade is C10100 Oxygen-Free Electronic copper. According to the Copper Development Association, C10100 contains at least 99.99% copper and has a specified electrical conductivity of approximately 101% IACS in its annealed condition.

IACS means International Annealed Copper Standard. Under this system, 100% IACS corresponds to a conductivity of approximately 58 megasiemens per meter at 20°C.

OFC reaching 101% IACS does not violate the definition of the standard. The original 100% reference was established using commercially available annealed copper in the early twentieth century. Modern refining and processing can produce copper that slightly exceeds that historical benchmark.

The Copper Development Association lists the following representative data for C10100 OFE copper:

• Copper content: at least 99.99%

• Oxygen limit: approximately 5 parts per million

• Electrical conductivity: 101% IACS

• Electrical resistivity: approximately 1.71 μΩ·cm at 20°C [1]

These figures confirm that OFC is an excellent electrical conductor. They do not, however, establish a specific sound signature.



Is OFC More Conductive Than Ordinary Copper?

It depends on what “ordinary copper” means.

OFC has greater purity and less oxygen than many general-purpose copper products. However, high-quality electrolytic tough-pitch copper, such as C11000, can also reach approximately 101% IACS.

Copper Development Association data lists both C10100 oxygen-free copper and C11000 high-conductivity copper at about 101% IACS, with representative resistivity values around 1.71 μΩ·cm. [2]

Therefore, it would be misleading to claim that OFC automatically has dramatically lower resistance than every other high-quality copper conductor.

The practical advantages of OFC include:

• Tightly controlled purity

• Very low oxygen content

• Excellent conductivity

• Good flexibility and formability

• Resistance to hydrogen embrittlement during certain high-temperature processes

• Consistent suitability for high-quality cable production

For speaker cables, conductor area and total cable length remain essential because even extremely pure copper develops resistance when it is made thinner or used over a longer distance.

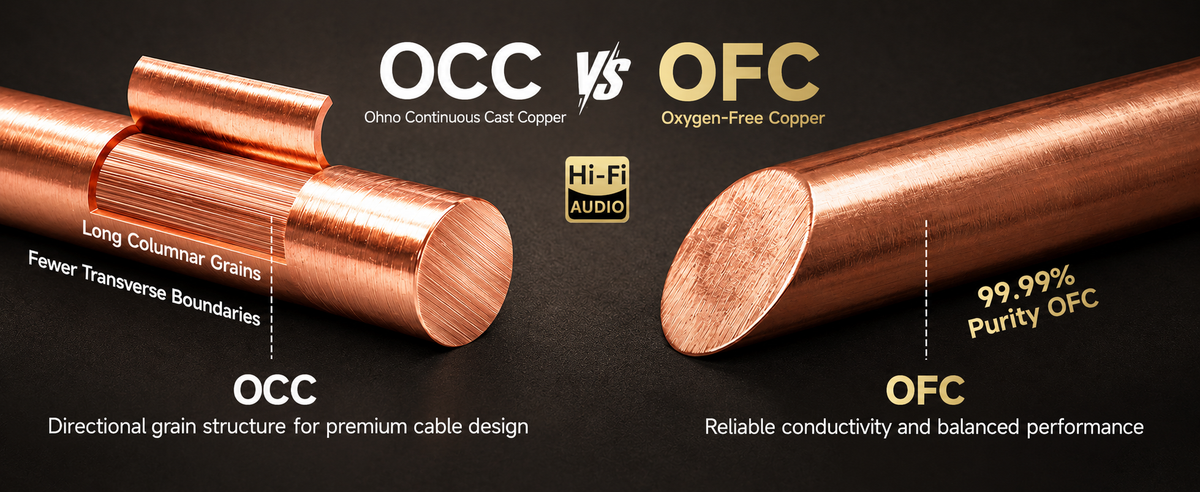

What Is OCC Copper?

OCC stands for Ohno Continuous Cast, named after Professor Atsumi Ohno.

Unlike conventional casting processes that produce many shorter grains, the OCC process carefully controls heating, cooling and solidification to create long columnar grains along the direction of the conductor. Under suitable conditions, it can produce extremely long crystal structures with fewer transverse grain boundaries.

A peer-reviewed study of copper produced using the Ohno Continuous Casting technique found that the as-cast material mainly contained continuous columnar grains with a preferred crystallographic orientation. The researchers also reported good plastic-deformation behavior.

However, the same study noted that subsequent drawing changes the copper’s texture and can break up parts of the original grain structure. This is an important detail: finished OCC wire should not be described as a perfectly uninterrupted crystal without qualification. [3]

The scientifically defensible description is that OCC is designed to produce longer, more directionally continuous grains and fewer transverse grain boundaries than conventional casting—not that every finished cable contains one flawless crystal from amplifier to speaker.



Why Do Copper Grain Boundaries Matter?

A copper conductor is made from crystalline material. Where one crystal grain meets another, a grain boundary is formed.

Grain boundaries influence mechanical strength and can also contribute to electron scattering. A 2023 peer-reviewed study investigated annealed copper wires and found that grain boundaries perpendicular to the drawing direction played a role in electron scattering and electrical conductivity.

The researchers experimentally determined the contribution of grain boundaries to room-temperature resistivity and developed a relationship between grain-boundary spacing and conductivity. [4]

This research supports the metallurgical reasoning behind OCC:

1. Grain boundaries can add a small resistive contribution.

2. Boundaries crossing the direction of current flow are particularly relevant.

3. A process that produces longer, directionally aligned grains may reduce some boundary-related scattering.

What the research does not prove is that this difference will necessarily be audible through a two- or three-meter speaker cable. The study examined copper microstructure and electrical properties, not human perception of an audio system.

That distinction matters.



OFC vs OCC: What Do the Measurements Mean in a Speaker System?

Both OFC and OCC can be extremely conductive. When conductor dimensions are similar, the difference in bulk resistance between two high-purity copper cables may be small.

Consider an illustrative speaker-cable calculation.

Assume:

• Cable length: 2 meters

• Electrical loop length: 4 meters, including positive and negative conductors

• Total conductor area per path: 5.08 mm²

• Copper resistivity: approximately 1.724 × 10⁻⁸ Ω·m

Using:

Resistance = resistivity × length ÷ cross-sectional area

The estimated loop resistance is approximately:

0.0136 ohm

If one copper conductor had 1% higher conductivity than another of exactly the same dimensions, its loop resistance would differ by only about:

0.00014 ohm

With an idealized 8-ohm speaker load, a 0.0136-ohm cable resistance corresponds to an approximate level change of only 0.015 dB before considering the speaker’s varying impedance.

This calculation is illustrative, not a measurement of a particular TODN product. It shows why conductor gauge and length often have a larger practical effect than a small percentage difference in copper conductivity.

For example:

• Doubling cable length approximately doubles its resistance.

• Halving conductor area approximately doubles its resistance.

• Changing conductivity by 1% changes resistance by approximately 1%.

This is why a correctly sized OFC cable can outperform an undersized OCC cable in basic electrical terms.



Does OCC Sound Better Than OFC?

Science cannot currently support a universal statement that OCC always sounds better.

Controlled metallurgical research establishes differences in grain structure. Electrical measurements can establish differences in resistance, inductance and capacitance. But translating small material differences into consistent audible outcomes requires properly controlled listening experiments.

Such an experiment would need:

• Cables with identical length and conductor area

• Identical geometry, insulation and connectors

• Closely matched resistance, inductance and capacitance

• Level matching

• Randomized switching

• Blind or double-blind conditions

• Enough trials and listeners for statistical analysis

Most informal cable comparisons do not control all these variables. The listener may know which cable is connected, the cables may have different gauges and constructions, or the switching delay may make reliable auditory comparison difficult.

Controlled speaker-cable listening tests have historically found that differences obvious during sighted evaluation may become difficult to identify reliably under double-blind conditions. This does not prove that every cable sounds identical, but it cautions against turning subjective descriptions into universal facts. [5]

The fairest conclusion is:

OCC has a legitimate metallurgical distinction, but conductor material alone does not guarantee an audible improvement in every system.



Commonly Described OFC Sound

Although a fixed OFC sound signature has not been established scientifically, audiophiles commonly describe OFC speaker cables as:

• Warm

• Full-bodied

• Smooth

• Rich through the midrange

• Weighty in the bass

• Relaxed in the treble

• Forgiving with bright recordings

These descriptions may partly reflect complete cable designs rather than the copper grade alone.

Many OFC cables use flexible multicore conductors, substantial copper area and constructions intended for affordable, everyday systems. Their perceived fullness may result from conductor size, cable resistance, geometry, the connected equipment or listener expectations—not simply the absence of oxygen.

Nevertheless, the OFC profile is a useful shopping shorthand when it is presented as a listening tendency rather than a guaranteed result.

OFC may suit you if:

• Your speakers or room sound slightly bright.

• You prefer a relaxed, non-fatiguing presentation.

• Bass weight and vocal body are priorities.

• You listen mainly to rock, electronic, pop, blues or soul.

• You want excellent copper conductivity at an accessible price.



Commonly Described OCC Sound

OCC speaker cables are commonly described as:

• Balanced

• Natural

• Transparent

• Smooth but detailed

• Fast during transients

• Precise in imaging

• More revealing of low-level information

• Better organized during complex passages

As with OFC, these are subjective descriptions. OCC cables are often positioned as premium products and may also use larger conductors, more elaborate geometry, additional shielding and higher-grade connectors.

If an OCC cable sounds different from an OFC cable, the copper casting method may not be the only variable.

OCC may suit you if:

• Your system is already well balanced.

• You want detail without deliberately emphasizing the treble.

• Instrument separation and spatial information are priorities.

• You listen to jazz, classical, acoustic music or complex orchestral works.

• Your system is sufficiently resolving to reveal small changes.

• You value premium construction and interchangeable terminations.



OFC vs OCC Comparison

What Matters More Than the OFC or OCC Label?



1. Conductor Area

Speaker cables carry more current than line-level interconnects. An adequate conductor area helps keep resistance low.

Compare actual conductor specifications rather than judging a cable only by its outer diameter. A thick decorative jacket does not necessarily mean more copper.

2. Cable Length

Use enough cable to route it safely without pulling on the connectors, but avoid unnecessary coils of excess cable.

Longer runs require more attention to conductor area because resistance increases in proportion to length.

3. Speaker Impedance

A given cable resistance represents a larger proportion of a 4-ohm load than an 8-ohm load. Low-impedance speakers and long cable runs therefore benefit more from larger conductors.

Real speaker impedance also changes with frequency, so “8 ohms” is usually a nominal value rather than a constant resistance.

4. Connector Quality

A clean and secure contact is essential. Loose, corroded or poorly fitted connectors can create more meaningful problems than a small theoretical difference between copper grades.

Gold and rhodium plating are primarily useful for corrosion resistance and long-term contact stability.

5. Cable Geometry

Strand arrangement, twisting and the spacing between positive and negative conductors affect resistance, inductance and capacitance. These measurable properties describe the complete cable more meaningfully than conductor purity alone.

6. System and Room

Speaker position, listening position and room acoustics usually create much larger audible differences than changing between two properly designed copper cables.

Cable selection should be the final stage of system matching, not a substitute for correcting setup problems.



A Brief Note on Cable Burn-In

Some listeners report subtle changes after a cable has been used for several hours, while others hear little or no difference.

Listening familiarity and psychoacoustic adaptation can also influence how a new cable is perceived over time. There is not strong controlled evidence supporting a precise burn-in schedule that applies to every copper cable.

TODN recommends installing the cable securely, listening at a normal volume and evaluating it with familiar music under consistent conditions. System matching, room acoustics and correct installation matter more than reaching an exact number of burn-in hours.



Choosing a TODN OFC Speaker Cable

For listeners who prefer OFC’s commonly described warmth, fullness and value, TODN offers two four-core options.

TODN HiFi 4-Core OFC Speaker Cable

The TODN HiFi 4-Core OFC Speaker Cable uses:

• 99.99% oxygen-free copper

• Four 1.27 mm² conductor cores

• 24K gold-plated pure-copper banana plugs

• Flexible nylon and cotton mesh protection

• Direction and polarity markings

The four cores provide a combined conductor area designed for strong bass delivery and stable full-range transmission. Its listening profile is intended for users who enjoy powerful low frequencies, a substantial midrange and a smooth presentation.

This model is a practical choice for rock, electronic music, pop and systems that benefit from additional body.

TODN Plus 4-Core OFC Speaker Cable

The TODN Plus 4-Core OFC Speaker Cable retains the four-core, 99.99% OFC construction and adds:

• Tinned-copper shielding

• A high-density flat braided exterior

• 24K gold-plated pure-copper banana plugs

• Additional abrasion and physical protection

Choose the Plus version if you want the general character and value of OFC together with a more heavily protected and shielded cable structure.



Choosing a TODN OCC Speaker Cable

TODN MAX 5 AWG OCC Speaker Cable

The TODN MAX 5 AWG OCC Speaker Cable is designed for listeners seeking a natural, balanced presentation from a substantial premium cable.

Its construction includes:

• OCC copper conductors

• 5 AWG conductor specification

• Dual shielding

• Approximately 20 mm outer diameter

• Carbon-fiber ferrite-bead splitter

• 24K gold-plated pure-copper connectors

• Interchangeable banana and spade terminations

The cable arrives with four 4 mm banana plugs installed and four Y-spade connectors in the package. Each plug can be unscrewed and replaced by hand, allowing banana-to-banana, spade-to-spade or mixed termination.

Its intended listening profile combines deep bass, a rich midrange, clear high frequencies and balanced instrument separation.

The 6.5 ft / 2 m version weighs approximately 2.05 lb / 929 g, so users should confirm that there is enough space behind the equipment and avoid allowing the cable’s weight to pull unnecessarily on the binding posts.

Important: This product is sold as one cable, not as a pair. A conventional stereo system normally requires two cables.

Which One Should You Choose?

Choose one of the TODN OFC models if:

• You want excellent conductivity at a lower price.

• You prefer a commonly described warm and full presentation.

• You want flexible banana-to-banana installation.

• Rock, pop, electronic music and powerful bass are priorities.

Choose the TODN Plus OFC model if you also want tinned-copper shielding and a more protective outer construction.

Choose the TODN MAX OCC model if:

• You want a premium, heavy-duty speaker cable.

• You prefer a commonly described balanced and detailed presentation.

• You want interchangeable banana and spade connectors.

• Instrument separation and full-range refinement are priorities.

• Your system and room are already sufficiently optimized.



Final Verdict

OFC and OCC are both legitimate high-quality copper conductors.

OFC offers tightly controlled purity, approximately 101% IACS conductivity in recognized grades and strong value for speaker-cable applications. OCC uses a specialized casting process capable of producing longer columnar grains with fewer transverse boundaries.

Scientific studies support the structural difference and confirm that grain boundaries can contribute to electron scattering. They do not prove that OFC must sound warm or that OCC must sound more detailed in every audio system.

The most accurate conclusion is:

OCC offers a meaningful metallurgical difference, while OFC already provides excellent electrical performance. Whether the difference becomes audible depends on the complete cable design, the audio system, the room and the listener.

Choose using measurable fundamentals first:

1. Appropriate conductor area

2. Suitable cable length

3. Low and consistent resistance

4. Secure connectors

5. Compatible terminations

6. Reliable construction

Then use the commonly described OFC and OCC listening profiles as system-matching guidance—not as guaranteed outcomes.



Frequently Asked Questions

Is OCC better than OFC?

OCC has a more specialized grain structure, but it is not automatically better in every speaker system. A properly sized OFC cable can provide excellent electrical performance. Compare the complete cable construction rather than the conductor name alone.

Is OCC more conductive than OFC?

Not necessarily by a large amount. Recognized OFC grades such as C10100 can reach approximately 101% IACS. OCC conductivity depends on purity, processing and the finished wire. Grain structure is only one contributor to total resistance.

Does OCC have fewer grain boundaries?

The OCC process is designed to form long columnar grains and reduce transverse grain boundaries. Research supports this microstructural distinction, although subsequent wire drawing can change and partially break up the original cast structure.

Does OFC sound warmer than OCC?

OFC is often described as warmer and fuller, while OCC is described as more balanced and detailed. These are subjective tendencies, not scientifically guaranteed sound signatures.

Can speaker cables change frequency response?

Cable resistance, inductance and capacitance can interact with the amplifier and speaker load. With an appropriately sized, reasonably short cable, these effects are usually small. Excessive resistance from a thin or long cable is a more practical concern.

Is cable gauge more important than OFC versus OCC?

It often is. Doubling cable length or substantially reducing conductor area can change resistance much more than a small difference in copper conductivity.

Are both OFC and OCC real materials?

Yes. OFC refers to recognized low-oxygen, high-purity copper grades. OCC refers to a genuine continuous-casting process that produces distinctive columnar grain structures.

Do OFC or OCC speaker cables require burn-in?

There is no universally established burn-in time supported by controlled evidence. Install the cable correctly and evaluate it over time with familiar recordings at a safe, normal volume.



References

1. Copper Development Association Inc. “C10100 Oxygen-Free Electronic Copper.” Copper.org Alloy Database. Material composition and physical-property data for C10100, including 99.99% minimum copper content and 101% IACS electrical conductivity.
   https://alloys.copper.org/alloy/C10100

2. Copper Development Association Inc. “Optimization of Motor Design: Copper Metal Properties.” Comparison of C10100 oxygen-free copper and C11000 high-conductivity copper, listing representative electrical conductivity of 101% IACS and electrical resistivity of 1.71 μΩ·cm.
   https://www.copper.org/environment/sustainable-energy/electric-motors/education/motor-rotor/production/proc01/process_01_11.html

3. Copper Development Association Inc. Copper and Copper Alloys: Welding Copper and Copper Alloys. Technical data for oxygen-free copper C10200, including representative electrical and thermal properties.
   https://www.copper.org/publications/pub_list/pdf/a1050.pdf

4. Li, R., et al. “Microstructure and Mechanical Properties of Columnar-Grained Copper Produced by the Ohno Continuous Casting Technique.” Materials Science and Engineering: A, vol. 639, 2015, pp. 122–130. The study examines the columnar grain structure, crystallographic orientation and deformation behavior of copper produced by the OCC process.
   https://doi.org/10.1016/j.msea.2015.04.099

5. Wang, W., et al. “Contribution of Grain Boundary to Strength and Electrical Conductivity of Annealed Copper Wires.” Journal of Materials Research and Technology, vol. 26, 2023, pp. 1459–1468. The study experimentally investigates how grain-boundary orientation and spacing contribute to electron scattering and room-temperature conductivity in copper wire.
   https://doi.org/10.1016/j.jmrt.2023.08.012

6. National Bureau of Standards. Copper Wire Tables, Circular of the Bureau of Standards No. 31. Reference data and calculation methods for copper-wire resistivity, conductivity and temperature correction.
   https://nvlpubs.nist.gov/nistpubs/Legacy/circ/nbscircular31e2.pdf

7. Greenhill, Laurence. “Speaker Cables: Can You Hear the Difference?” Stereo Review, August 1983. Reports controlled double-blind comparisons of speaker cables and discusses differences between sighted and blinded listening results. This is a controlled listening report rather than a modern peer-reviewed materials study.
   https://www.worldradiohistory.com/Archive-All-Audio/Archive-HiFI-Stereo/80s/HiFi-Stereo-Review-1983-08.pdf

Reference Note

References 1–6 support the article’s material, conductivity, resistivity and copper-microstructure discussion. Reference 7 provides historical context for controlled speaker-cable listening tests. None of these sources establishes that OFC must sound “warm” or that OCC must sound “more detailed” in every audio system. Those terms describe commonly reported listening impressions rather than universal laboratory findings.
